Designed with surface mounting Technologies to detect smoke through infrared beams in places that have high and wide areas (warehouse, malls, etc.)

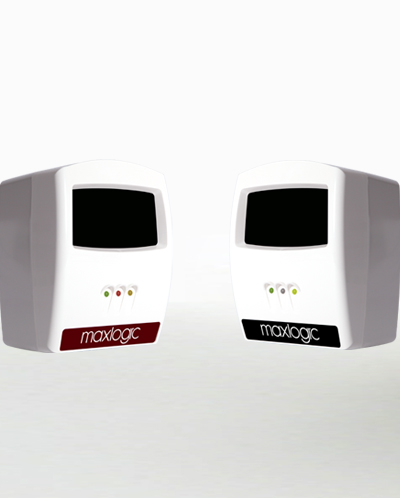

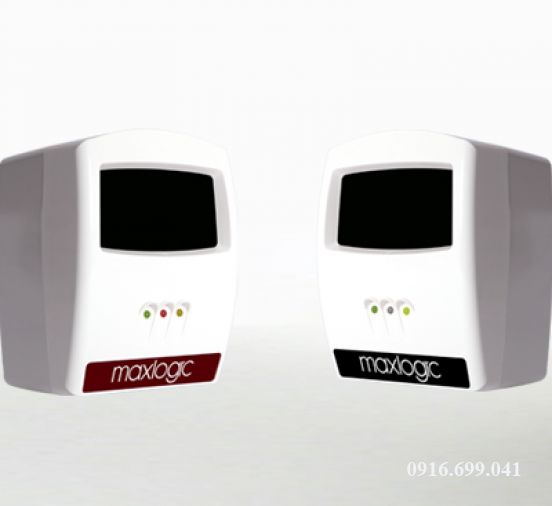

Maxlogic beam type smoke detector consists of 2 parts; receiver and transmitter. They should be installed as facing each other between the distance of 5-100m.
Reflective beam type smoke detector consists 2 parts as a receiver/transmitter unit and reflector. Unit and reflector should be mounted as facing each other, distance
is 5-35 meters with 1 reflector and 5-50 meters with using 4 reflectors.
Detectors detect the light obstruction percentage caused by the smoke created by fire.

◗ Ability to adjust itself to polluted and dirty environment
◗ Three sensitivity levels can be easily adjusted
◗ Continuous control of communication against the faults
◗ With beam type smoke detector 1240 m2, with reflective beam type smoke detector 620 m2 protection area
◗ Easy programming buttons
◗ LED indicators for power, fire and fault conditions
◗ Intelligent addressable and conventional models
◗ Short circuit isolator models
◗ Receiver-Transmitter or reflective models
◗ 2 digit numerical screen for easy commissioning and setup
| DETECTOR MODELS | |
| Product code | Description |
| ML-2170 | Maxlogic conventional beam type smoke detector (receiver and transmitter is included) |
| ML-2173 | Conventional reflector beam type smoke detector |
| ML-0171 | Beam type smoke detector reflector, with 1 reflector |
| ML-0174 | Beam type smoke detector reflector, with 4 reflector |
