BẢNG ĐIỀU KHIỂN LẬP TRÌNH KNX

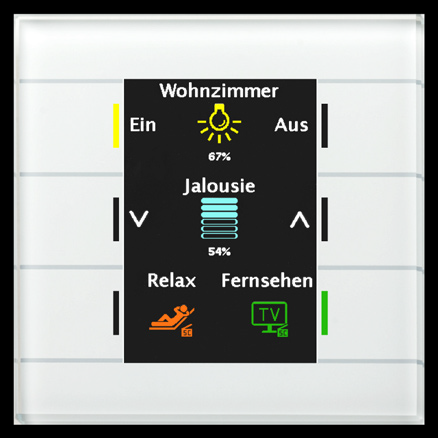

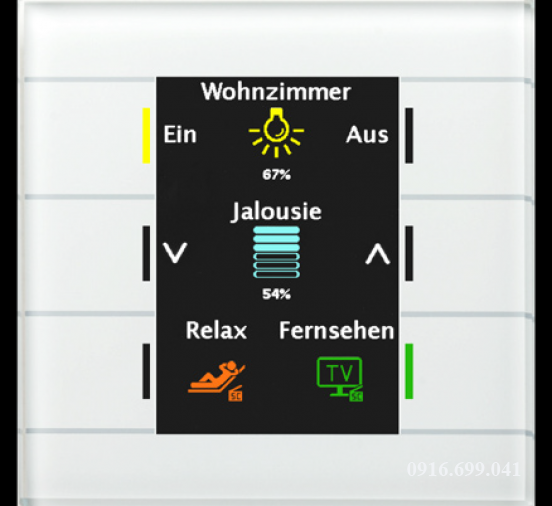

The Glass Push Button II Smart has a large, colored active display to indicate funtion and status. For each button are symbols and plain text adjustable. The 2 buttons on top are used to enter the function levels directly, the other 4 buttons can be reserved with 2 or 3 function levels (8/12-fold). The Glass Push Button II Smart can be also used as 6-fold push button without function levels.
The Glass Push Button II Smart with temperature sensor offers additional functions to set temperature and operation mode of the heating. In combination with the MDT Heating Actuator an efficient room temperature regulation can be configured and vizualized. Furthermore user defined 1Bit messages and 14Byte text telegrams can be indicated.

• Production in Germany, certified according to ISO 9001
• The buttons can be programmed for 1 or 2 button operation
• 4 buttons can be reserved with 2 or 3 function levels (8/12-fold)
• 2 buttons to enter the function levels directly
• Large, coloured active display to indicate function and status
• Symbols and plain text adjustable for each button/function
• 1 or 2 button operation for switching, dimming, shutters, values
• Short/long button push with 2 objects
• RGB status for all buttons separately controlable from each level
• Indication of inside/outside temperature and time
• Automatic display brightness via light sensor and day/night object
• Slap function with additional switch channel
• Installation in a installation box, Dimensions (W x H): 92mm x 92mm
• No additional power supply required
• Integrated bus coupling unit, 3 years warranty
• Additional functions BE-GT2Tx.01 (with temperature sensor)
• With temperature sensor to measure room temperature
• Additional functions to set temperature and operating mode
• Indication of individual messages/text telegramms (1Bit/14Byte)
• Application as RTC in combination with AKH heating actuator
• RGB Status for each button controlable from each level
