NÚT NHẤN CẢM ỨNG MẶT KÍNH

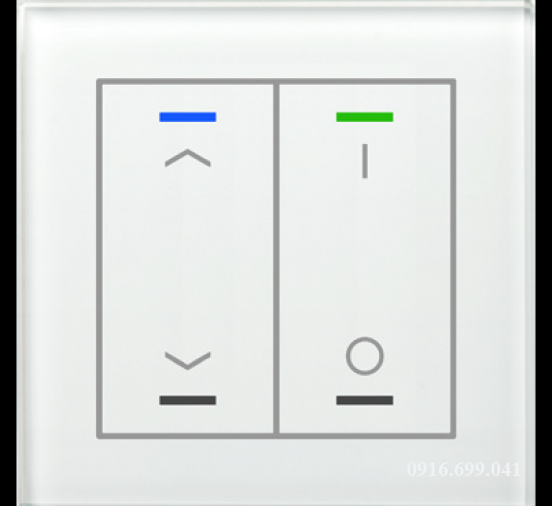

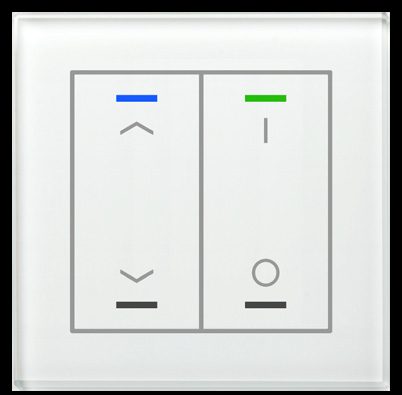

Depending on its parameterization the MDT Glass Push Button II Lite releases KNX telegrams. The sensor areas can be programmed for 1 or 2 button operation (BE-GTL4xx.01: 4 single sensor buttons). The RGBW status LEDs can be controlled with internal or external objects. The LED brightness is controllable via day/night or brightness object.
In addition to switching, dimming, blinds, scenes or sending values, a lot more functions are available. The Glass Push Button II Lite has 4 integrated logic blocks and an slap function with additional switch channel.
The Glass Push Button II Lite has an innovative group function with long/extra long button press. For example, with a long press of a button, a shutter can move normally UP and DOWN, while the extra long button press moves the entire blind group of the room.
With the new multi touch function up to 4 values/datapoints can be send to one ore more objects. With a single button different light groups can be switched, e.g. 1 x tap is ceiling light, 2 x tap is wall light etc.

• Production in Germany, certified according to ISO 9001
• Comprehensive application
• New multi touch function, sends up to 4 values/DPTs
on the same or different objects
• Innovative group control with long/extra long button press
• 1 and 2 button operation for switching, dimming, shutters, values
• Changing of values/scenes with up to 4 values
• Short/long button push with 2 objects
• Slap function with additional switch channel
• Four RGBW Status LEDs
• LED brighness controllable via day/night or brightness object
• 4 logic blocks
• Installation in an installation box
• Dimensions (W xH): 92mm x 92mm
• Integrated bus coupling unit
• 3 years warranty
