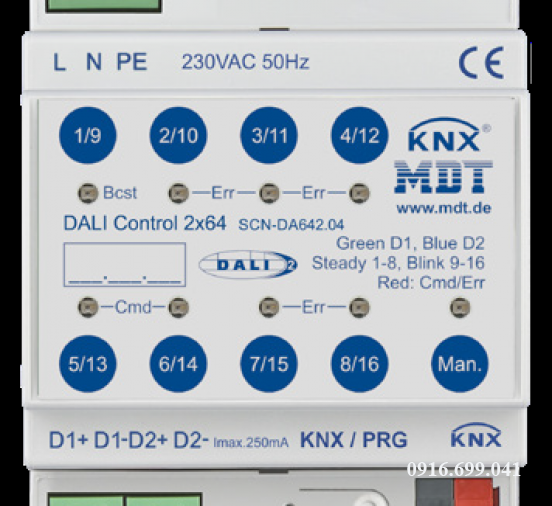

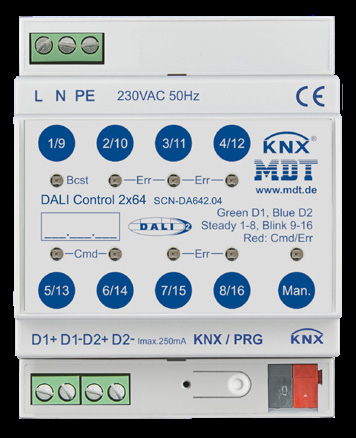

DALI/KNX GATEWAY

The MDT DALI Control Gateway is the interface between DALI lights and the KNX installation and offers many new possibilities, such as the light control in the HSV colour space.
The MDT DALI Control Gateway allows the inividual control of up to 64 ECGs/16 DALI groups. (SCN-DAL642.04 > 2 x 64 EVGs/16 DALI groups, 2 DALI outputs).

• Production in Germany certified according to ISO 9001
• Individual control of up to 64 ECGs/16 DALI groups
(SCN-DAL642.04 > 2 x 64 EVGs/16 DALI groups, 2 DALI outputs)
• Supports DALI and DALI-2 standard, as well as DALI DT6/DT8 ECG
• Innovative HSV colour control, RGB, RGBW and XY colour
according to DALI DT8 standard
• Tunable White, colour temperature control
• Integrated colour control module for time dependent
controlling of the luminous colour in up to 300 steps
• Operation modes like normal operation, continuous operation,
night operation, stairwell and panic operation, Manual operation
• 16 scenes with individual dimming times
• Energy saving function for switching off the ECGs in the DALI
groups (via additional KNX switch actuator)
• Fault detection of lamp faults and faulty ECGs
• Quick exchange of ECG
• Free DCA app for commissioning the DALI bus system and
configuration of the scenes and time control
• Commissioning with ETS5. 3 years warranty
